COMPLETE SALAD / VEGETABLE PROCESSING AND PACKING PLANT

COMPLETE SALAD / VEGETABLE PROCESSING AND PACKING PLANT

Contact us for price

East Midlands, UK.

orCall +44 1249 735987

Description

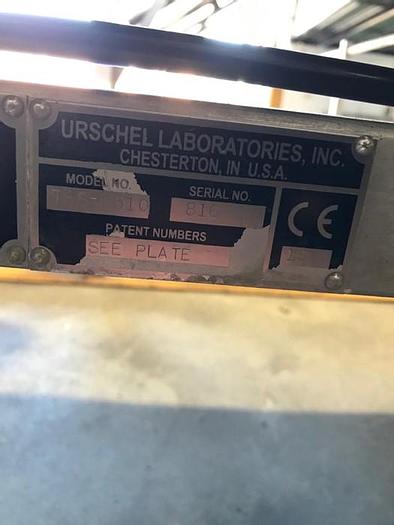

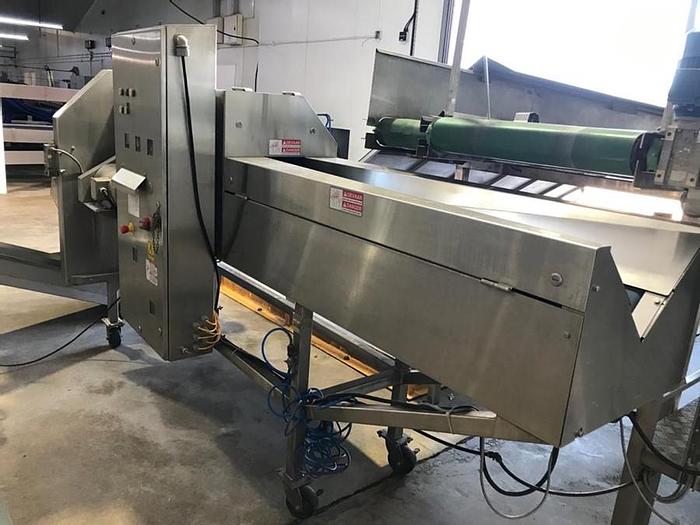

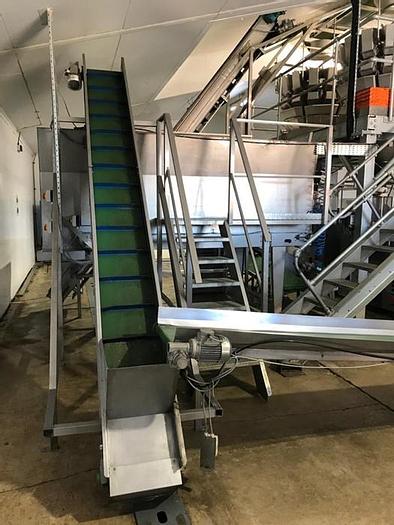

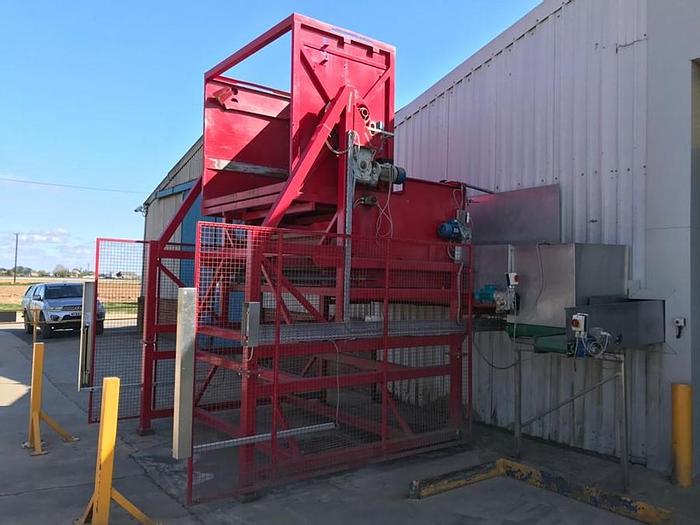

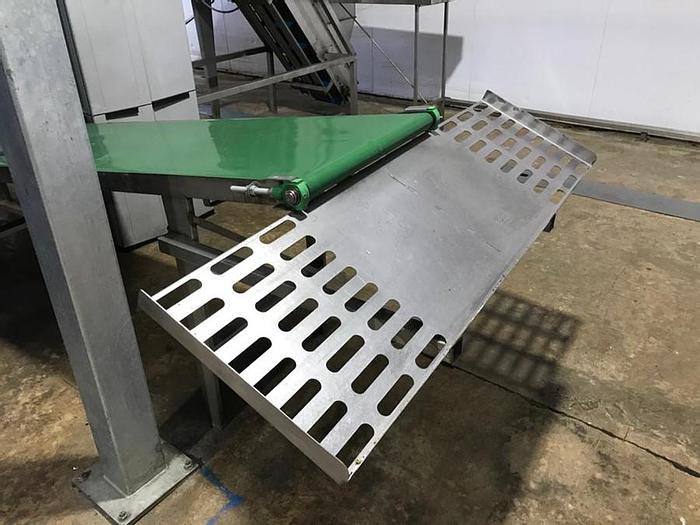

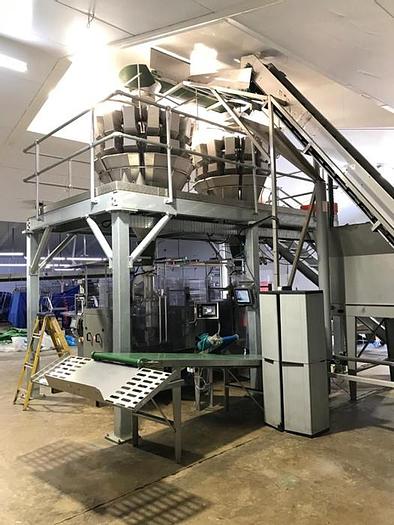

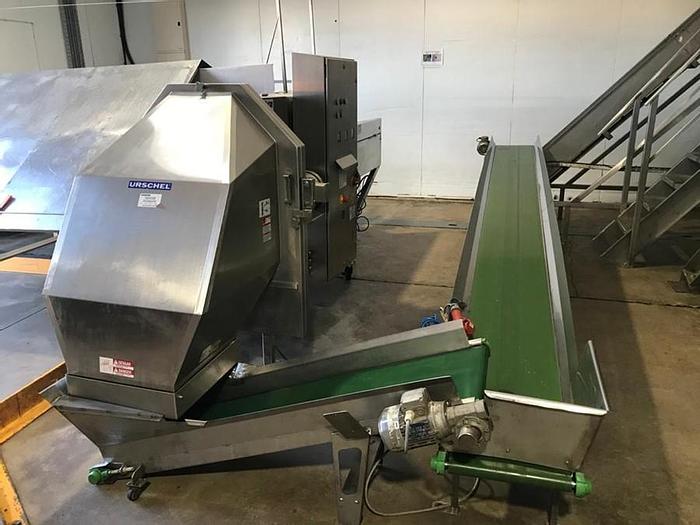

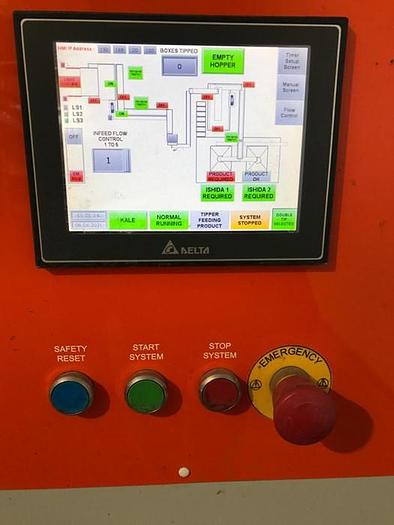

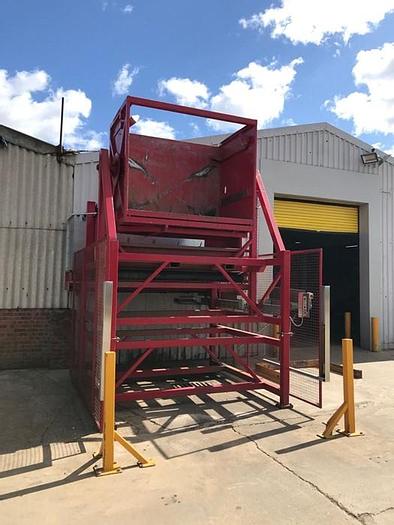

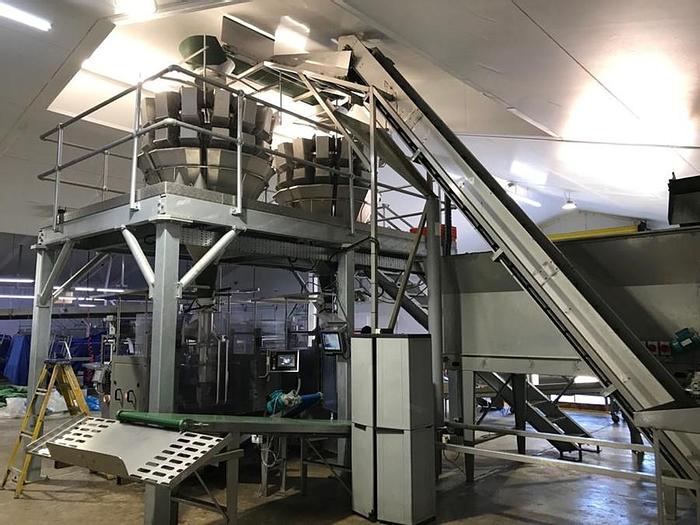

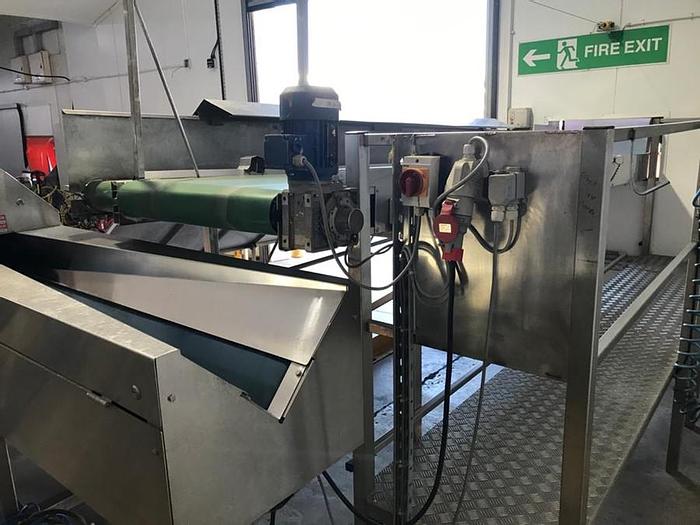

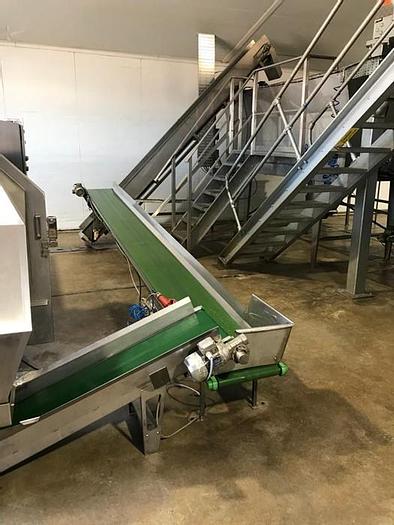

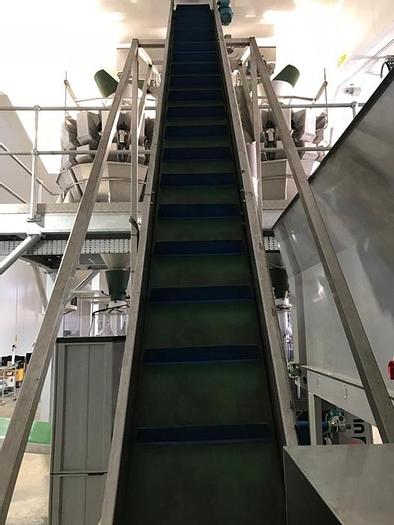

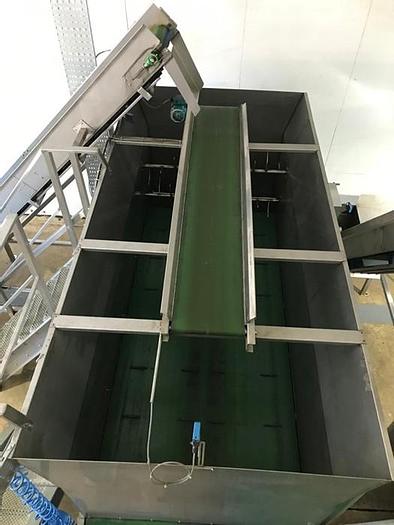

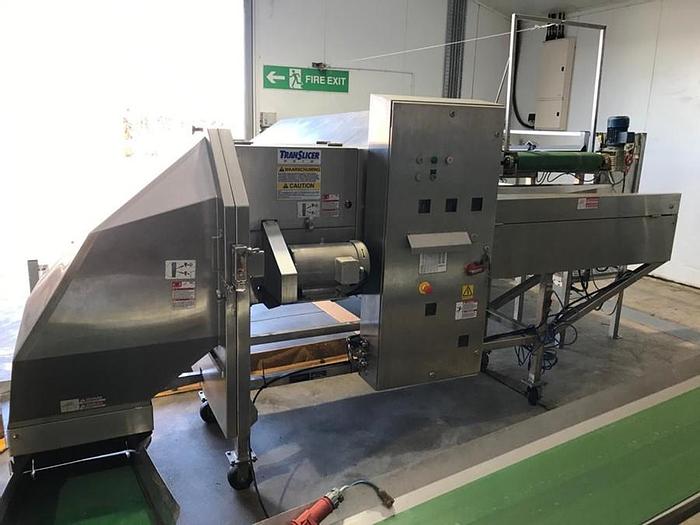

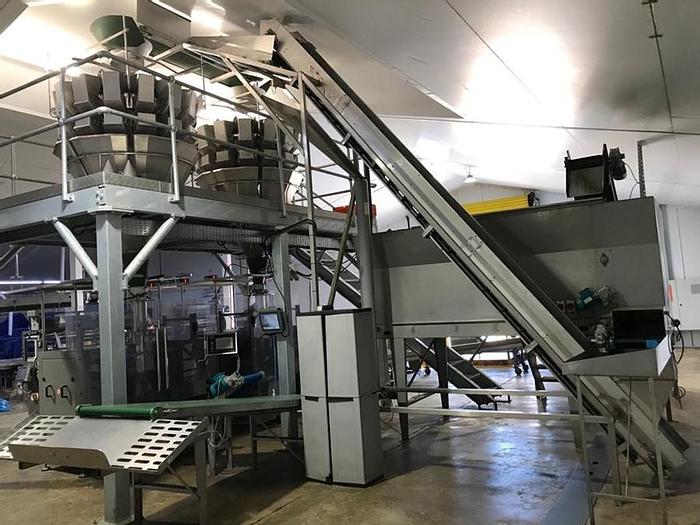

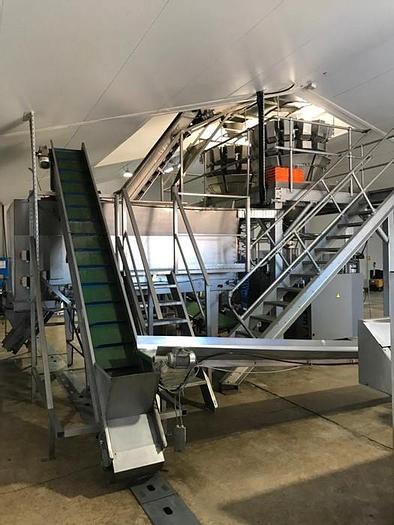

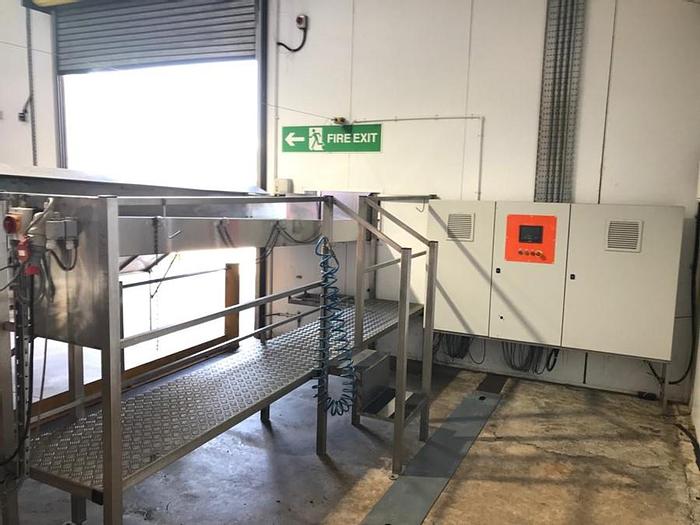

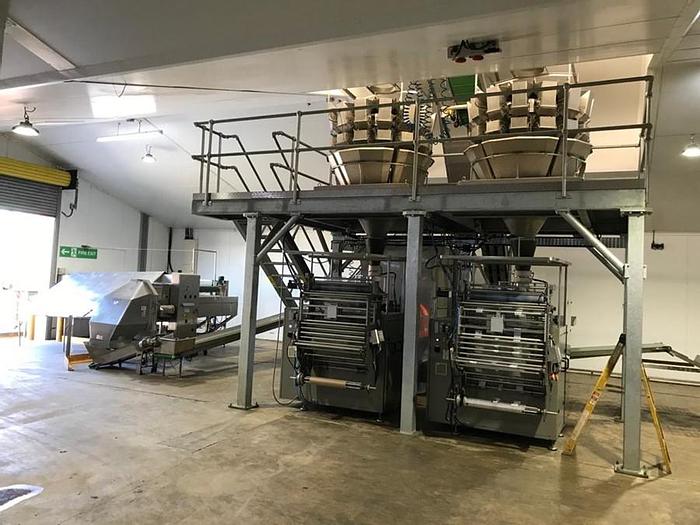

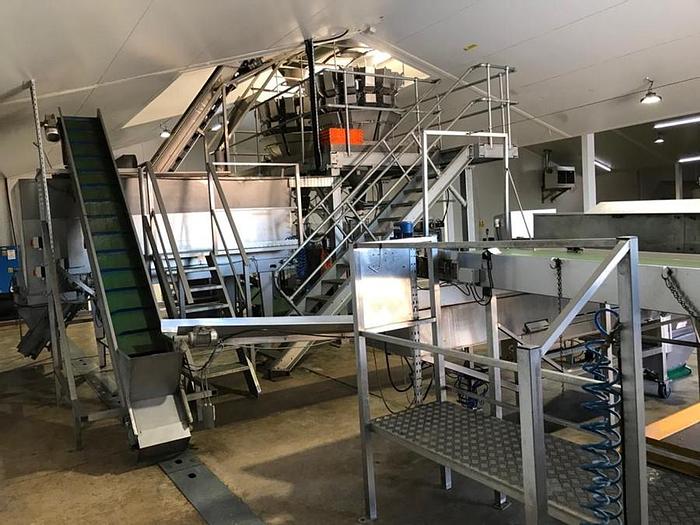

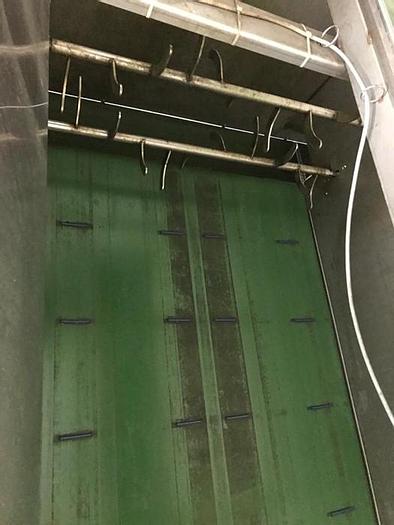

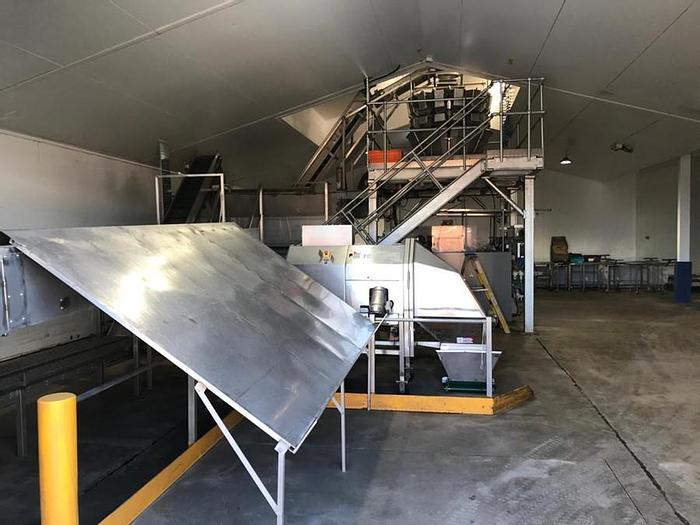

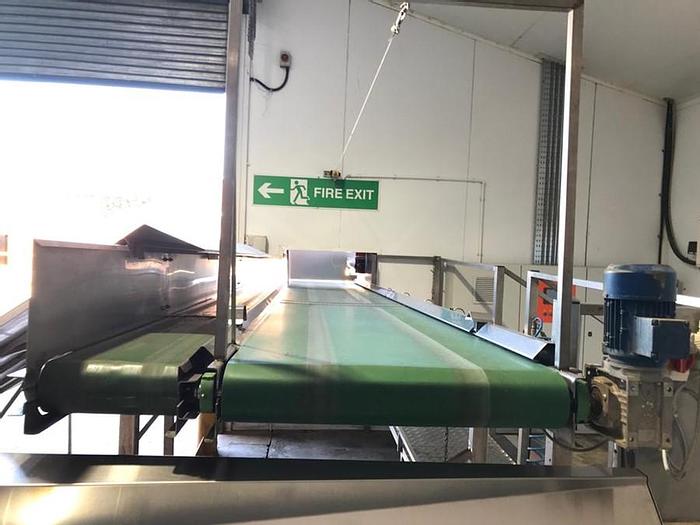

Complete leafy salad / vegetable processing and packaging system, comprising of: 1 x Omron bulk roller tipper / hopper with cross-feed conveyor.  1 x Infeed inspection conveyor on platform. Belt width - 700mm.  1 x Outfeed / waste conveyor (leading to dolav bin outside). Belt width - 300mm.  1 x Stainless steel packing frame with rail for baskets. Dimensions - 3m W x 1.78m H.  1 x Touch screen control panel which controls the complete system / parameters / speed of belts. The inspection system and slicing system can run at different times or speeds depending on how much product is coming in from the fields / how much product is already in the bulk hopper pre-packaging system. 1 x Urschel TranSlicer 2510 high-capacity slicer / shredder. Accepts compressible products such as leafy vegetables up to 203mm (8'') in diameter and firm products up to 171mm (6-3/4''). This is fitted with a Julienne cutting wheel. Julienne cuts ranging from 9.5mm x 9.5mm to 76.2mm x 50.8mm.  1 x Small neoprene belt conveyor.  1 x Neoprene belt conveyor. Belt dimensions - 390mm W x 4970mm L.  1 x Inclined conveyor with flyted neoprene belt. Belt width - 400mm. Flytes - 50mm. Discharge height - 3.3m.  1 x Two-direction conveyor (positioned above bulk bin hopper).  1 x Bulk bin hopper / conveyor on stainless steel gantry. Fitted with sensor control. Hopper dimensions - 3.4m L x 1.7m W x 1.2m deep.  1 x Cross-feed conveyor from bulk bin tipper to inclined conveyor. Belt width - 400mm.  1 x All stainless steel packing table. Overall dimensions - 1200mm L x 600mm W x 1140mm H.  1 x Inclined conveyor with flyted neoprene belt feeding top of gantry. hopper at base of conveyor fitted with sensor control. Belt width - 400mm. Flytes - 80mm.  1 x Two-direction conveyor. If both multi-head weighers are running then the conveyor will alternate direction to feed both multi-head weighers evenly.  1 x Ishida 14-head weigher, fitted with dimple pans. Complete with touch screen control. Bucket size - 5 litres. Model - CCW-RV-214W-1S/50-WP-SLD3. Serial number - 560013785. Date of manufacture - March 2019. Power - 230v, 50hz, 1 phase. 1 x Ishida 14-head weigher, fitted with dimple pans. Complete with touch screen control. Bucket size - 5 litres. Model - CCW-RV-214W-1S/50-WP-SLD3. Serial number - 560013864. Date of manufacture - April 2019. Power - 230v, 50hz, 1 phase. 1 x Ulma vertical form, fill and seal bagger with touch screen control. Fitted with Zodiac HS thermal printer. Model - VTI-440. Serial number - 60600204. Date of manufacture - 2019. Jaw width - 440mm.Total power - 10kW. Voltage - 415v, 50hz, 3 phase.  1 x Outfeed conveyor.  1 x Ulma vertical form, fill and seal bagger with touch screen control. Fitted with Zodiac HS thermal printer. Model - VTI-440. Serial number - 60600208. Date of manufacture - 2019. Jaw width - 440mm. Total power - 10kW. Voltage - 415v, 50hz, 3 phase.  1 x Outfeed conveyor.  1 x Outfeed neoprene belt packing conveyor with stainless steel packing frame for baskets. Complete with all manuals and drawings.  Previously used for kale and other leafy vegetables.  Video and viewings available upon request.  Buyer to Remove.  UKFM2-2121.

Specifications

ConditionUsed
