PSS Speed Combi Grinder SCG 280

PSS Speed Combi Grinder SCG 280
Location:Melksham, United Kingdom
Description
PSS Speed Combi Grinder SCG 280 **BRAND NEW - Made to order**
Grinding of fresh meat, frozen meat and whole frozen meat blocks.
Capacity: Depends on a meat temperature and a selected cutting set.
Fresh meat: Fine grinding: (Ø3 mm - Ø8 mm) 8 000 - 13 000 kg/h. Coarse grinding: (Ø10 mm - Ø30 mm) 14 500 - 20 000 kg/h.
Frozen meat: Fine grinding: (Ø3 mm - Ø8 mm) 4 000 - 10 000 kg/h. Coarse grinding: (Ø10 mm - Ø30 mm) 12 000 - 17 000 kg/h.

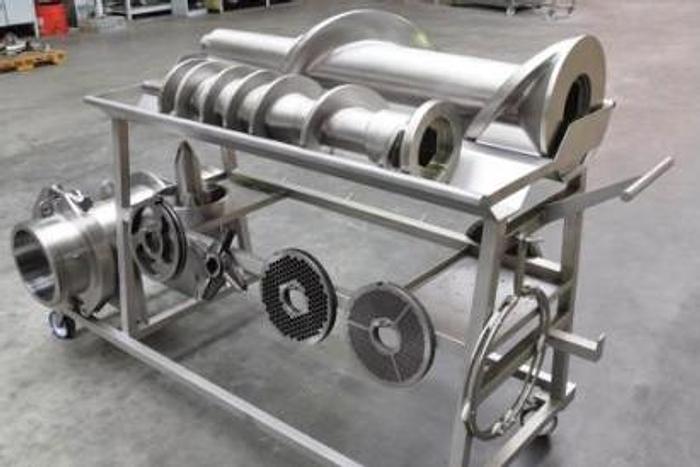

The grinder consists of: The cabinet: - legs with machine shoes, 4 pcs - hopper, 1 pc - stainless steel feeding worm, 1 pc - stainless steel processing worm, 1 pc - grinding head (two part head, mounted by clamp), 1 pc - pre – cutter 280 – by choice, 1 pc - cutting knife 280 – by choice, 1 pc - hole plate 280 – by choice, 3 pcs
Motors: - 110 kW SIEMENS (grinding worm), frequency converter VACON included, 1 pc
- planetary gearbox BONFIGLIOLI, 1 pc
- 18,5 kW NORD with a gearbox (feeding worm), frequency converter VACON included, 1 pc
- belt transmissions (grinding worm), 1 pcs
- chain transmission (feeding worm), 1 pcs Wiring: 3/PE/N, 50 Hz, 230/400 V, TN-C-S.
Facilities to CE compliance: - safety switch for maintenance, 1 pc
- crane for 200 kg, 1 pc
- safety cover for grinding head, 1 pc
- accessories trolley, 1 pc

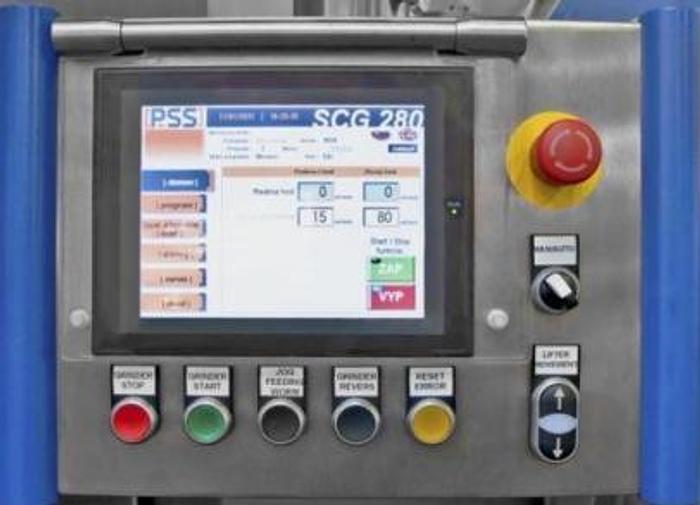

Control: Via a central control panel RITTAL with necessary buttons, a central stop button and colour touch screen OMRON.
Material: Stainless steel AISI 304.
Finish: Polished surfaces.
Specifications
Manufacturer | PSS |
Model | Speed Combi Grinder SCG 280 |
Condition | New |
