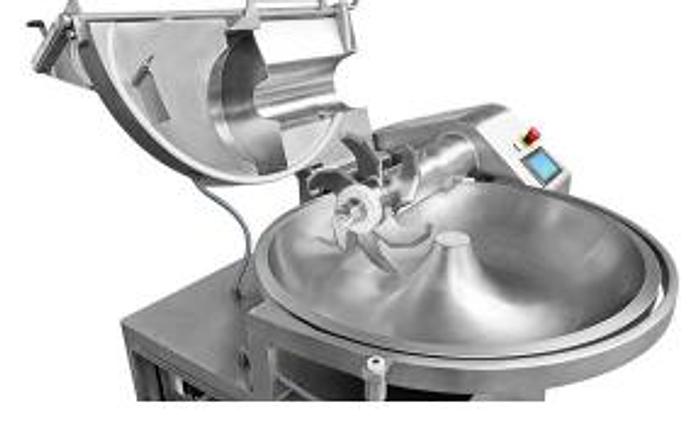

PSS K 50 BOWL CUTTER

PSS K 50 BOWL CUTTER

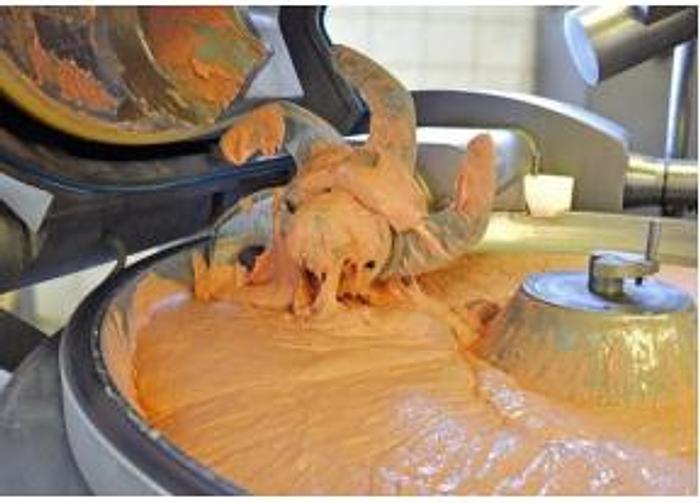

Application: Cutting, fine cutting, mixing and emulsifying of processed materials.

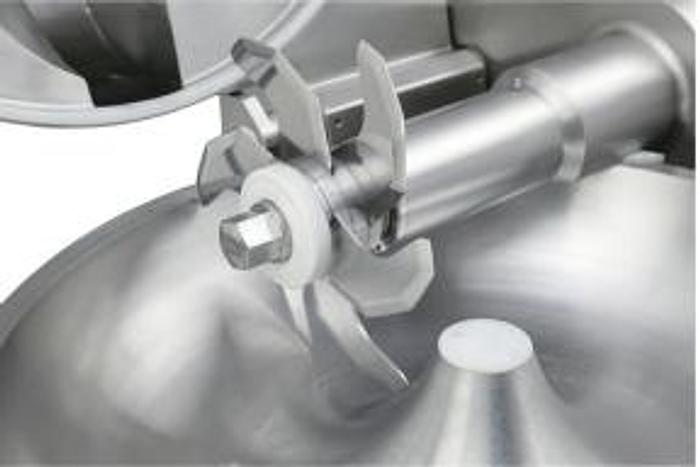

Bowl volume: 50 l. Knife speed: Mixing – 120, 240 rpm/min. Cutting – 120 - 4800 rpm/min. Bowl speed: 4, 10,15, 20 rpm/min. The cutter consists of: The cabinet: - legs with machine shoes, 5 pcs - bowl, 1 pc - cutting head (6 knifes), 1 pc - knife shaft, 1 pc - cutting head cover, 1 pc - bowl cover, 1 pc - maintenance safety switch, 1 pc.

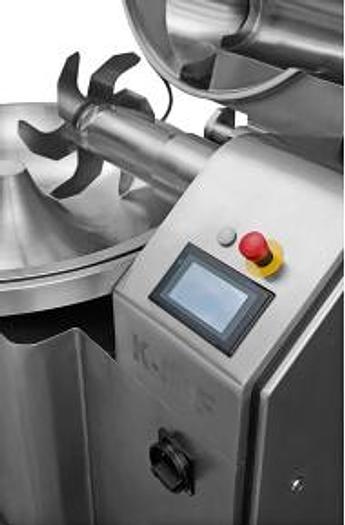

Motors: - 18,5 kW SIEMENS (cutting head), frequency converter VACON included, 1 pc - 0,55 kW NORD with a gearbox (bowl), frequency converter VACON included, 1 pc - belt transmissions (cutting head), 1 pc Facilities to CE compliance: - maintenance safety switch, 1 pc - safety cutting head cover, 1 pc - safety bowl cover, 1 pc Wiring: 3/PE/N, 50 Hz, 230/400 V, TN-C-S. Control: Via a touch screen and the most important functions of the equipment can be operated by using them, and central stop button.

Material: Stainless steel AISI 304. Finish: Polished surfaces.
