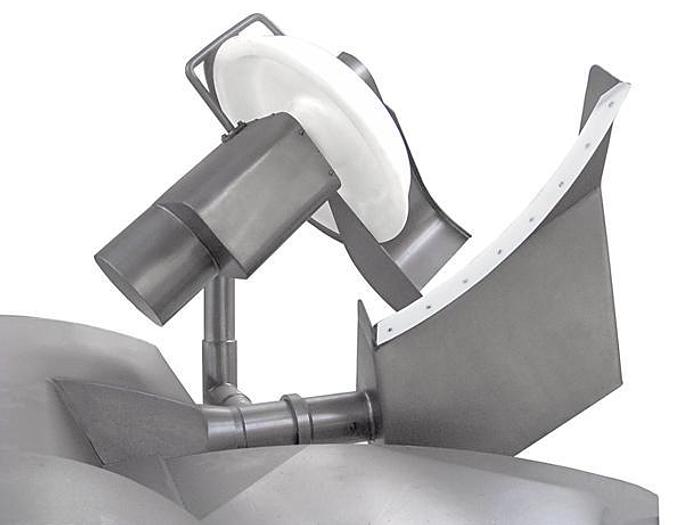

PSS K200 V BOWL CUTTER

PSS K200 V BOWL CUTTER.

Application: Cutting, fine cutting, mixing and emulsifying of processed materials.

PSS K 200 F High-speed cutter, designed for food industry workshops for grinding, mixing and emulsifying processed raw materials. On the high-speed chopper PSS K 200 F it is possible to prepare fine-grained and coarse-grained products, providing exceptional quality.

Bowl volume: 200 l. Knife speed: Mixing – 100, 200 rpm/min. Cutting – 200 - 4300 rpm/min. Bowl speed: 3, 5, 7, 10 rpm/min. The cutter consists of: The cabinet: - legs with machine shoes, 5 pcs - bowl, 1 pc - cutting head (6 knifes), 1 pc - knife shaft, 1 pc - cutting head cover, 1 pc - bowl cover, 1 pc - maintenance safety switch, 1 pc - automatic unloading device, 1 pc - lifting device, 1 pc - water dosing, 1 pc

Motors: - 90 kW SIEMENS (cutting head), frequency converter VACON included, 1 pc - 1,5 kW NORD with a gearbox (bowl), frequency converter VACON included, 1 pc - 1,1 kW NORD with a gearbox (unloading device), 1 pc - 1,1 kW (hydraulic unit), 1 pc - belt transmissions (cutting head), 1 pc Vacuum system: - 5,5 kW, 200 m3/h, water ring pump, 1 pc Facilities to CE compliance: - maintenance safety switch, 1 pc - safety cutting head cover, 1 pc - safety bowl cover, 1 pc Wiring: 3/PE/N, 50 Hz, 230/400 V, TN-C-S. Control: Via a central control panel with necessary joysticks for the main functions, a central stop button and colour touch screen OMRON.

Dimensions:2 840 мм x 2 640 мм x 2 600 мм

Weight:4000 kg
