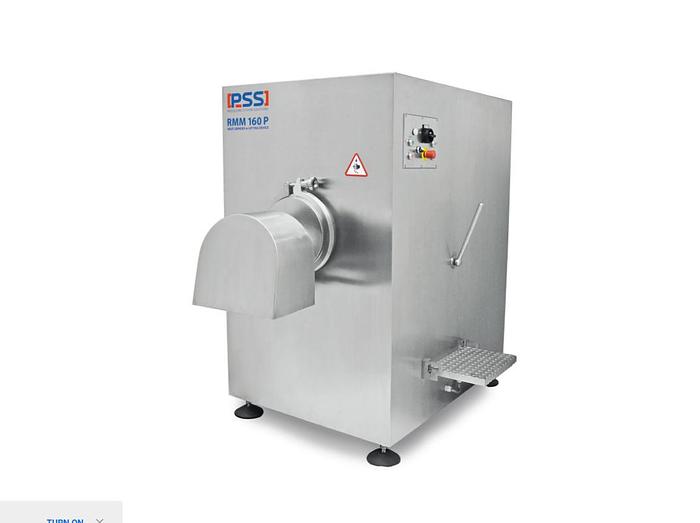

PSS RMM 160 FROZEN MEAT GRINDER

PSS RMM 160 FROZEN MEAT GRINDER

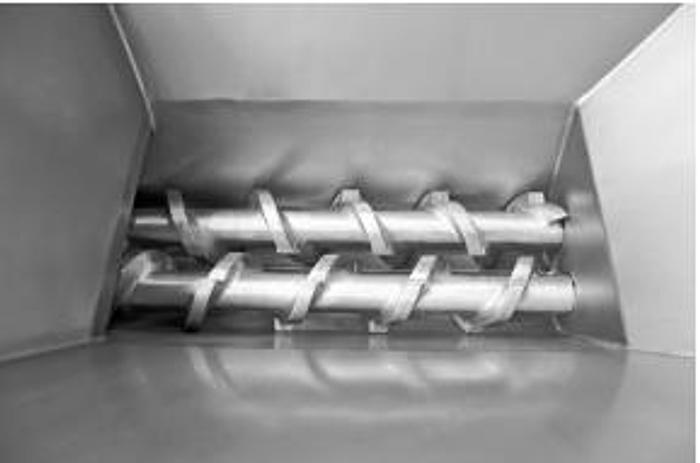

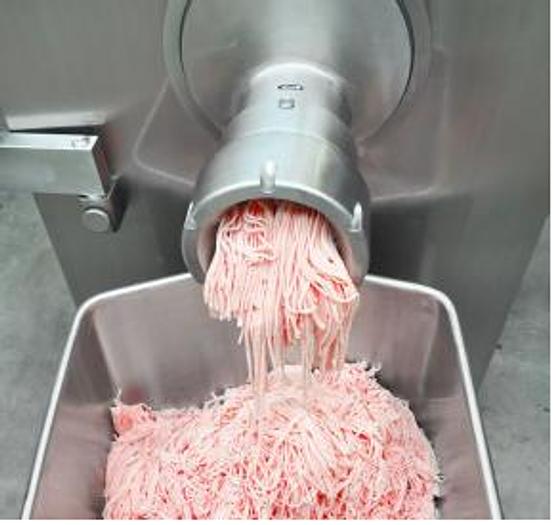

Capacity: Depends on the temperature of the meat and the selected cutting set. Fine grinding (04 mm - 08 mm) 1,500 - 2,200 kg/h. Coarse grinding (Ø10 mm - Ø25 mm) 2,500 - 5,000 kg/h. The grinder consists of: The cabinet: - legs with machine shoes, 4 pcs - hopper, 1 pc - stainless steel grinding worm, 1 pc - stainless steel feeding worms, 2 pcs - grinding head (two part head, mounted by clamp), 1 pc - pre – cutter 160 – by choice, 1 pc - cutting knife 160 – by choice, 2 pcs - hole plate 160 – by choice, 2 pcs

Motors: - 22 kW SIEMENS (grinding worm), 1 pc - 1,5 kW NORD with gearbox (feeding worms), 1 pc - belt transmission, 1 pc Wiring: 3/PE/N, 50 Hz, 230/400 V, TN-C-S. Facilities to CE compliance: - safety switch for maintenance, 1 pc - safety cover for grinding head, 1 pc - inspection step, 1 pc Control: Via a central control panel with necessary buttons and central stop button. FH03-03 of force from 25.05.2004 Registration sign: 2022/DA-36-544/DIV6

Material: Stainless steel AISI 304. Finish: Polished surfaces.
