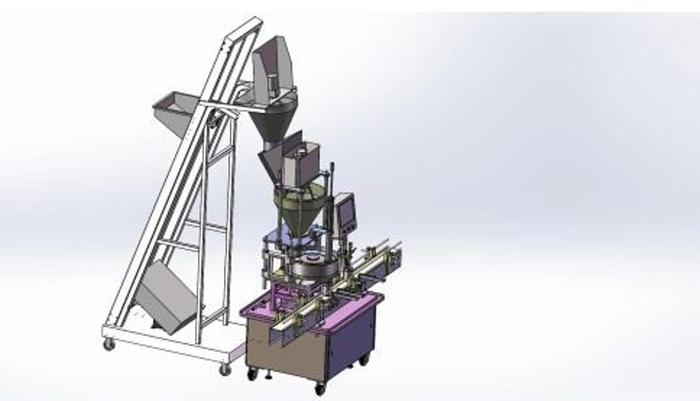

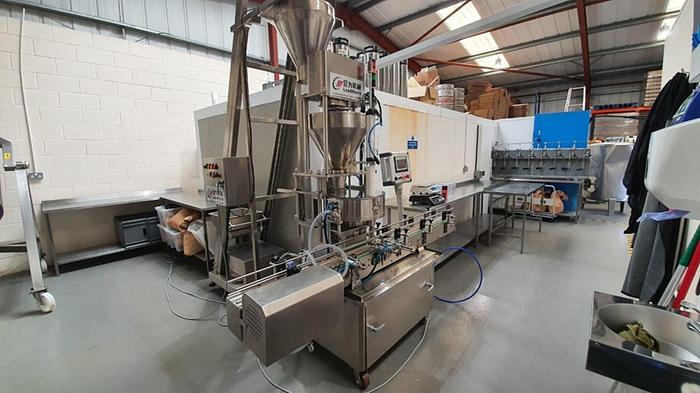

2019 COMPLETE PICKLED VEGETABLE FILLING SYSTEM LW-FSP20

Complete pickled vegetable filling system, comprising of:

Elevator

Measuring device for pickled vegetables

Sauce measuring device

Automatic filler for pickled vegetables. Model - LW-FSP20. Filling range - 100g-250g per cup. You can fill multiple cups per jar. Seller was using it for 200g-500g.

Sauce / liquid depositor with anti-drip device

Bottle conveyor

Siemens PLC programming controls, touch screen operation.

Electrical supply - 380v, 50hz, 3 phase.

Production capacity - Up to 30 jars / pots per minute depending on size of deposit.

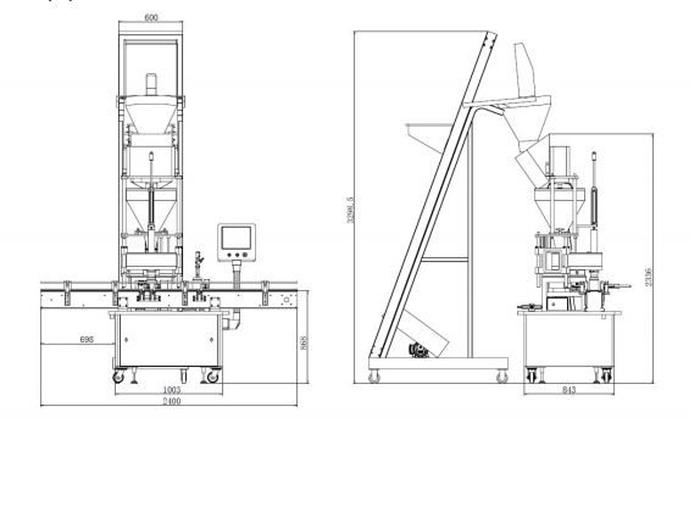

Overall dimensions - 1600mm L x 1100mm W x 2200mm H.

Complete with all manuals / electrical drawings.

Machine never put into production, trial works only.

Videos available on request.
