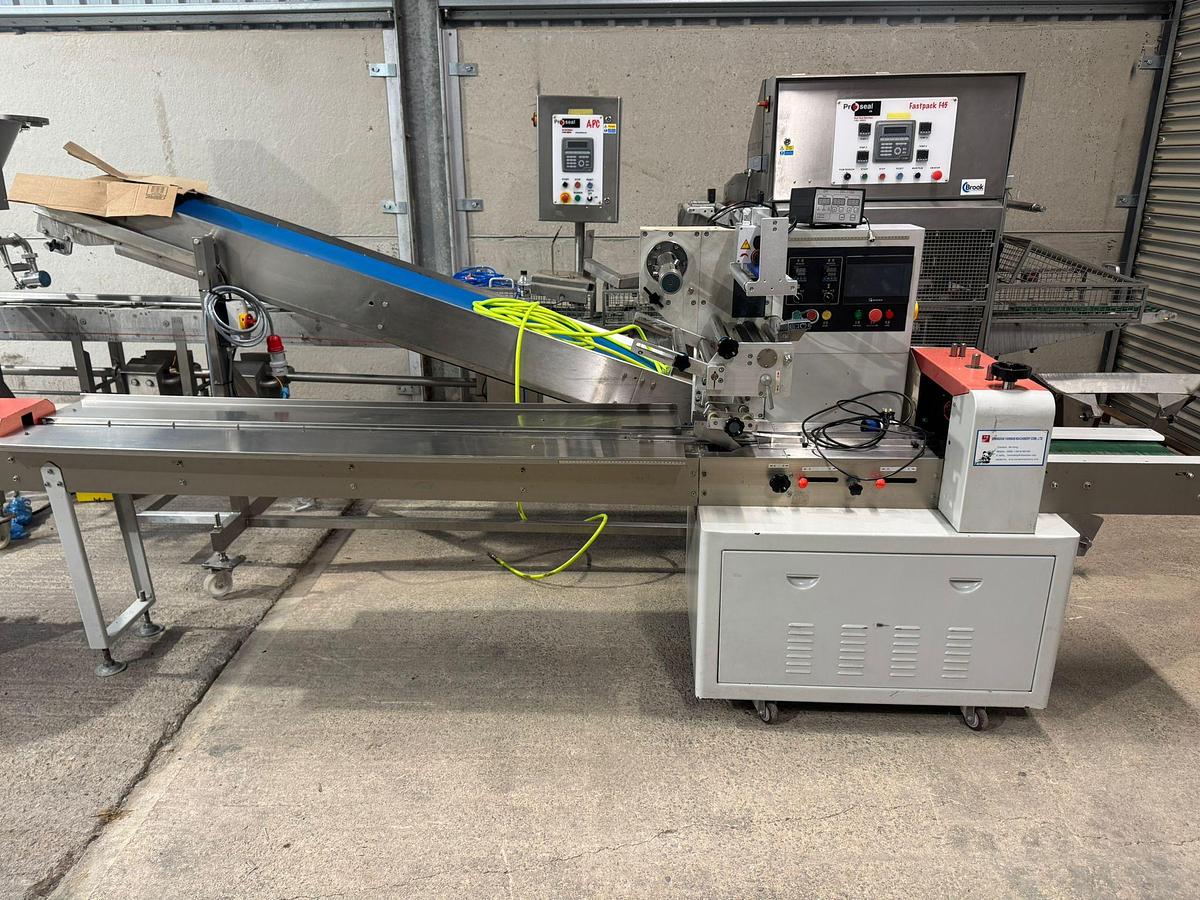

2022 Chinese flowrapper WB-250

The WB-250 flow pack machines with a basic model for those customers who are getting started in flow pack packaging. It is an easy-to operate manual machine for new users of the flow pack technology.

Mainly designed for the packaging of trays and punnets of fruit and vegetables or bakery goods, pastries and cakes (buns, fairy cakes, muffins, etc.), it is a machine capable of packaging a wide range of products from different sectors and applications.

Equipped with an industrial PC with a 7” HMI touchscreen

Function and features:

1. Color touch screen display, PLC control, automatic and fast photoelectric track.

2. The bag length need not be set, machine could detect it automatically.

3. Machine has high performance, simple operation and fast packing speed.

4. Gear system besides double frequency converter controller, which making machine simpler operation, high-speed and stable performance.

 Technical Parameters

Model

YB-250

Packing speed

35-220 bags/min

Width of film

90-250 mm

Making bag size

(Double low cutter)   L 65-190, W 30-110, H 5-50 (mm)

(Double high cutter)   L 90-220, W 30-110, H5-60 (mm)

(Single high cutter)    L 150-330, W 30-110, H 5-60 (mm)

Total power

2.4 KW

Power supply

1 Ph. AC220V, 50/60Hz

Machine size

L4000 × W850 × H1500mm

Net weight

400kg
