PSS PSS K-120

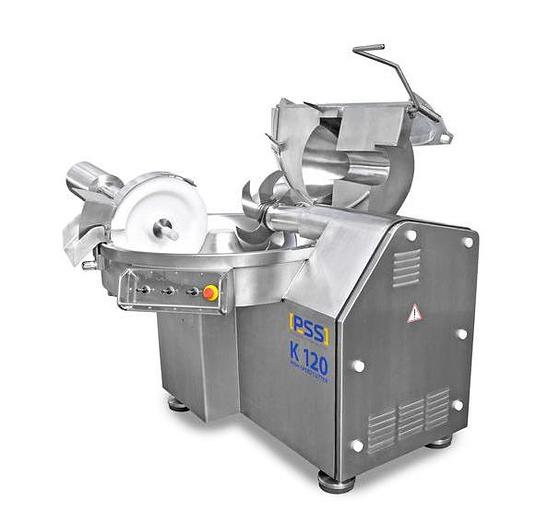

PSS K-120 BOWL CUTTER

High-Speed Cutter K 120 F Quantity: 1 pc Application: Cutting, fine cutting, mixing and emulsifying of processed materials. Bowl volume: 120 l. Knife speed: Mixing – 100 - 300 rpm/min. Cutting – 100 - 5000 rpm/min. Bowl speed: 3, 6, 9, 12 rpm/min. The cutter consists of: The cabinet: - legs with machine shoes, 5 pcs - bowl, 1 pc - cutting head (6 knifes), 1 pc - knife shaft, 1 pc - cutting head cover, 1 pc - bowl cover, 1 pc - maintenance safety switch, 1 pc - semiautomatic unloading device, 1 pc

Motors: - 55 kW SIEMENS (cutting head), frequency converter VACON included, 1 pc - 1,1 kW NORD with a gearbox (bowl), frequency converter VACON included, 1 pc - 0,75 kW NORD with a gearbox (unloading device), 1 pc - belt transmissions (cutting head), 1 pc Equipment for CE conformity: - safety switch for maintenance, 1 pc - cutting head safety cover, 1 pc - bowl safety cover, 1 pc Wiring: 3/PE/N, 50 Hz, 230/400 V, TN-C-S. Control: Via a central control panel with necessary joysticks for the main functions, a central stop button. FH03-03 of force from 25.05.2004 Registration sign: 2022/DA-36-557/DIV6
